Aviary Cage-Free Housing System

Home / Products / Layers & Breeders / Cage-Free / Aviary Cage-Free Housing System

Aviary Cage-Free Housing System

This multi-tier enriched welfare cage adopts an integrated design matching poultry houses, equipped with diversified activity spaces including cage frames and perches. The layout separates high and low drinking and feeding zones in accordance with chickens’ natural behaviors. Its door-free design eliminates the constraints of traditional caging systems and allows unrestricted movement for birds. Independent secluded laying nests, dedicated litter dust-bathing areas and perches satisfy chickens’ full needs for egg-laying, resting and foraging/playing. An outdoor sun bathing area can also be added on demand to fully safeguard animal welfare at all levels.

Inquire Now Next Products

Little Giant's aviary system for laying hens is a fully integrated, multi-tier cage-free housing solution designed for commercial-scale operations — providing hens with the freedom of movement and behavioral enrichment that define genuine cage-free production, while maintaining the automation, egg quality, and flock oversight that commercial viability demands.

1. The multi-tier aviary is fully integrated into the poultry house, offering birds a variety of environments, including elevated tiers, littered floor space, and perches.

2. Designed to accommodate natural behaviors, the system provides drinking and feeding areas at different heights, which birds can easily reach by jumping and flying short distances.

3. Its open, doorless design eliminates confinement, granting birds significantly greater freedom of movement compared to conventional caged systems.

4. A distinct separation between activity zones and private nesting areas provides a secluded space for laying eggs and a calm environment for post-lay rest.

5. The system is equipped with a dedicated litter area for dust bathing and ample perching space, enriching bird behavior and enhancing overall welfare.

6. Optionally, the system can be extended to include an outdoor range ("winter garden"), offering birds access to sunlight and fresh air for superior welfare outcomes.

Product Feature

Nesting Area

1. Nest boxes are located on both sides of the structure, furnished with soft matting and privacy curtains to create a secure and tranquil environment for egg-laying.

2. These nests can be automatically opened or closed on a schedule. They are typically closed at night and opened during the laying period to maintain hygiene and prevent soiling.

Resting & Activity Area

1. The structure features upper and lower levels with left and right sections, all fitted with perches. To meet specific flock needs, additional perches can be installed to create a highly enriched resting space.

2. A series of platforms and stairs at varying heights allow birds to move effortlessly between the floor and different tiers by jumping and flying.

3. Removable partition nets are strategically placed. These can be managed during different growth phases to guide bird movement and encourage physical activity.

Feeding & Drinking Area

1. Feeding troughs with a chain delivery system are accessible on both levels and in all sections. Anti-roosting devices are installed above the troughs to maintain feed hygiene.

2. Drinking lines are installed separately from the feeders on each tier. This layout naturally encourages movement as birds transition between feeding and drinking, promoting activity.

Litter & Dust Bathing Area

1.The floor is covered with dry, friable litter, facilitating natural behaviors like scratching, foraging, and dust bathing.

2. Depending on the farm layout, this litter area can be connected to a secure outdoor range, allowing birds to roam outside, dust bathe, and bask in sunlight.

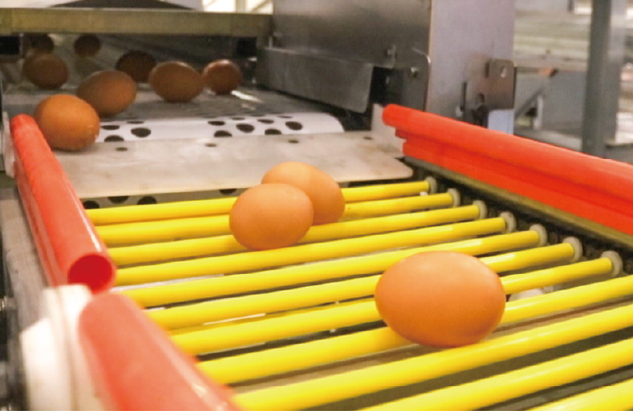

Egg Collection System

1. Eggs are laid in the nests and automatically roll onto a central collection belt, which transports them gently to the front of the house for centralized grading and packing.

2. The system can be customized with intermediate egg transfer units to convey eggs via a central line directly to a dedicated egg handling room, streamlining the workflow.

Manure Management & Service Access

1. A manure belt system runs beneath the tiers, efficiently removing the majority of waste from the house, similar to advanced cage systems but in a cage-free environment.

2. Integrated overhead walkways allow staff to safely access the center of the house for bird monitoring and nest checks.

3. A central service corridor within the main structure provides periodic access for the birds and allows staff to perform internal maintenance and inspections.

Regulatory Compliance & Market Certification

Little Giant's cage-free aviary system is engineered to meet or exceed the following standards:

EU Directive 1999/74/EC (Cage-Free Laying Hen Housing)

Minimum 4 kg floor space per hen (barn system)
Minimum 250 cm² usable nest box area per hen
Minimum 15 cm perch length per hen
Access to litter for pecking and scratching

Note: EU member states vary in specific national interpretations. Our engineering team will confirm compliance with your target market's exact regulatory requirements.

USDA Organic / Certified Humane® / Global GAP

These certifications add additional requirements for outdoor access, stocking density, and flock management. Where outdoor access is required (free-range or organic classification), the aviary house design includes pop-hole door integration.

Zero-Cage Retail Commitments

For farms supplying egg retailers who have made cage-free pledges, the aviary system documentation package includes a system description letter and specification sheet suitable for buyer compliance submissions.

Aviary vs Conventional Cage: A Practical Comparison

Factor	Conventional H-Type Layer Cage	Aviary System for Laying Hens
Hen mobility	Restricted within cage unit	Unrestricted — full house access
Natural behavior expression	Very limited	Full range (perching, nesting, dust bathing)
Welfare certification	Not cage-free eligible	Cage-free, organic, humane-certified eligible
Market access	Conventional egg market	Premium / cage-free / export retail markets
Stocking density	Higher birds/m² (vertical cage columns)	6–9 birds/m² (regulated by welfare standards)
Egg quality	High (controlled environment)	High (with proper nest box management)
Floor-laid egg rate	Near zero	Manageable with proper nest-to-bird ratio
Labor intensity	Low (full automation)	Low–Medium (requires litter management)
Construction cost	Lower	Higher (but opens premium market access)
Regulatory trajectory	Phasing out in EU by 2027	Aligned with global cage-free transition

Configuration Options: Built for Your Farm, Your Market, Your Climate

No two aviary system for laying hens installations are identical. Little Giant designs each system from the site constraints and market requirements upward.

Tier count:

2-tier: Suitable for lower-ceiling houses; easier management for first-time aviary operators
3-tier: Standard configuration balancing density and welfare
4-tier: Maximum density for tall, purpose-built closed houses

House design:

New-build closed house with full climate control (recommended for hot or cold climates)
Retrofit into existing structure (feasibility assessment required)
With pop-holes for outdoor/free-range access (organic and free-range certifications)

Automation level:

Full automation: feeding, drinking, egg collection, manure belts, climate control, IoT monitoring
Semi-automatic: Manual egg collection with automated feeding and drinking
Starter configuration: Upgradeable from semi to full automation as flock scales

Climate adaptation:

Climate	Configuration Focus
Tropical / high humidity	Enhanced cross-ventilation, corrosion-resistant materials, elevated litter management frequency
Desert / extreme heat	Full tunnel ventilation + evaporative cooling pads, LED heat management lighting
Cold climate (<-10°C)	Positive-pressure heating, sealed house design, insulated wall panels
Temperate	Standard hybrid ventilation, automated switchover

Why Source Your Aviary System from Little Giant?

Designed and Manufactured Under One Roof

The structure, feeding system, drinking system, egg belts, nest boxes, and climate control components of Little Giant's aviary system for laying hens are all engineered and manufactured in-house. You do not receive a bolted-together system from three suppliers. Integration is a specification, not an installation problem.

39 Years of Layer Housing Engineering — Including Cage-Free

Little Giant has manufactured layer housing systems since 1987. Our cage-free aviary designs are informed by 39 years of understanding how hens behave in automated housing systems — what drives floor egg rates, what causes feather pecking outbreaks, and what nest box design actually reduces floor-laid eggs in practice.

Climate-Tested in Real Markets

Our aviary systems have been installed in tropical climates (Southeast Asia), desert conditions (Middle East), and temperate zones (Central Asia, Africa). Each climate zone requires a different approach to ventilation, litter management, and house design. We have documented performance data from each.

EPC Turnkey Option Available

For farms building from the ground up, Little Giant offers a complete EPC (Engineering, Procurement, Construction) service: site survey → house design → civil works → aviary installation → commissioning → training. One contract, one point of responsibility.

Full Lifecycle Support

Pre-purchase: Free layout design and system recommendation
Installation: Factory engineer commissioning
Training: Flock placement, litter management, and equipment operation training
After-sales: 7×24h support, spare parts guarantee, remote diagnostics via IoT platform

Start Your Cage-Free Project with a Free Layout Design

Tell us your house dimensions, target flock size, climate zone, and intended certification track. Our engineering team will return a full aviary system for laying hens layout drawing, component specification, and indicative investment range within 48 hours — at no cost.
