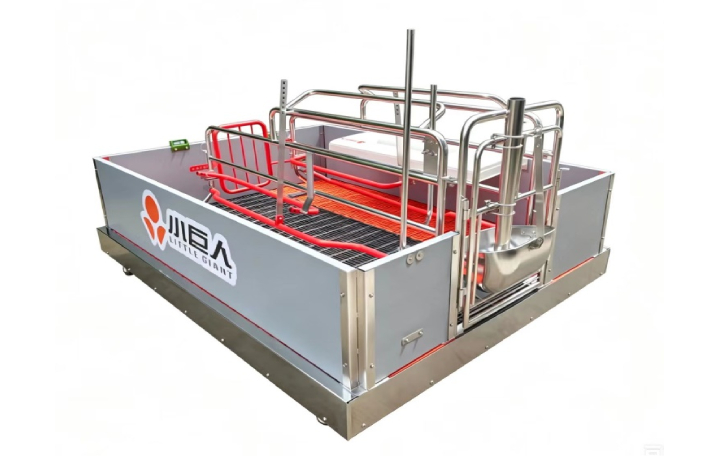

    Farrowing Crate

    The European-style Farrowing Crate adopts scientific design, durable materials and intelligent management systems, helping farms upgrade from extensive breeding to refined production. It realizes high sow productivity, high piglet survival rate and efficient farm management.

    Inquire Now Next Products
    Share:
    Technical Specifications

    Main Structure & Materials



    • Overall dimension of farrowing crate frame: 1.8m × 2.4m
    • Sow confinement stall: 0.65m(W) × 1m(H). Side panels & rear door: 1" Q235 steel pipe (wall thickness:2.5mm); front door: 3/4" Q235 steel pipe (wall thickness:2.3mm)
    • Processing: Full welding & hot-dip galvanized finish, zinc coating ≥80μm
    • Fence panels: PVC, 500mm height, 35mm thickness with herringbone rib structure; available in grey or white

    Slat Floor & Supporting System



    • Sow area: Cast iron slatted floor with flat steel support beams
    • Piglet area: High-strength PP plastic slatted floor supported by FRP beams

    Functional Accessories



    • Adjustable rear gate: Variable width to fit sows of different body sizes
    • Sow feeding: Single-piece deep-drawn 304 stainless steel feeder, 1.2mm plate thickness
    • Piglet creep feeding: Stainless steel creep feed pan
    • Water supply: Separate drinking nipples for sows and piglets respectively
    • Piglet warming set: Heat preservation cover + heat lamp assembly

    Advantage

    Fitted with adjustable anti-crush bars and stall partitions to separate sow and piglet spaces.

    Fitted with adjustable anti-crush bars and stall partitions to separate sow and piglet spaces.

    Adopts standardized component design for quick assembly, disassembly and layout adjustment.

    Adopts standardized component design for quick assembly, disassembly and layout adjustment.

    Zoned layout: dedicated sow resting area, piglet playground and warming compartment.

    Zoned layout: dedicated sow resting area, piglet playground and warming compartment.

    Integrated feeding, watering and heating structure.

    Integrated feeding, watering and heating structure.

    Compliant with EU IPPC and international animal welfare requirements.

    Compliant with EU IPPC and international animal welfare requirements.

    HDPE slatted floor enables fast separation of manure and urine.

    HDPE slatted floor enables fast separation of manure and urine.

    Contact Us for Custom Solutions

    Your success in modern livestock farming is our mission

    Tell us about your challenges and goals.

    A dedicated project manager will contact you to explore the possibilities and provide a free initial consultation.
