Take a look! Another Little Giant BGP Series Customized Smart Egg Grading System has been successfully shipped. Tailor-made to meet the customer's specific requirements, this intelligent solution incorporates a range of advanced technologies designed to maximize egg processing efficiency, product quality, and operational reliability.

Let's explore the innovations behind this high-performance system.

Intelligent Process Control: The Journey of a Premium Egg

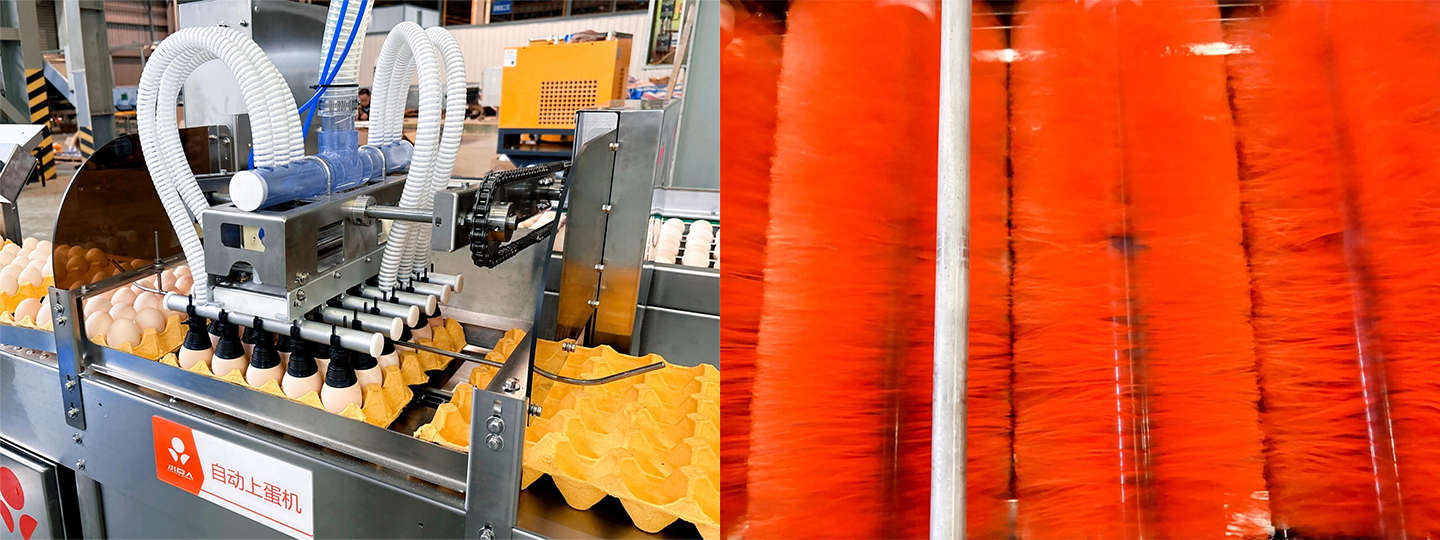

Automatic Egg Loading：A vacuum suction system with flexible gripping technology gently handles eggs, reducing breakage to nearly zero.

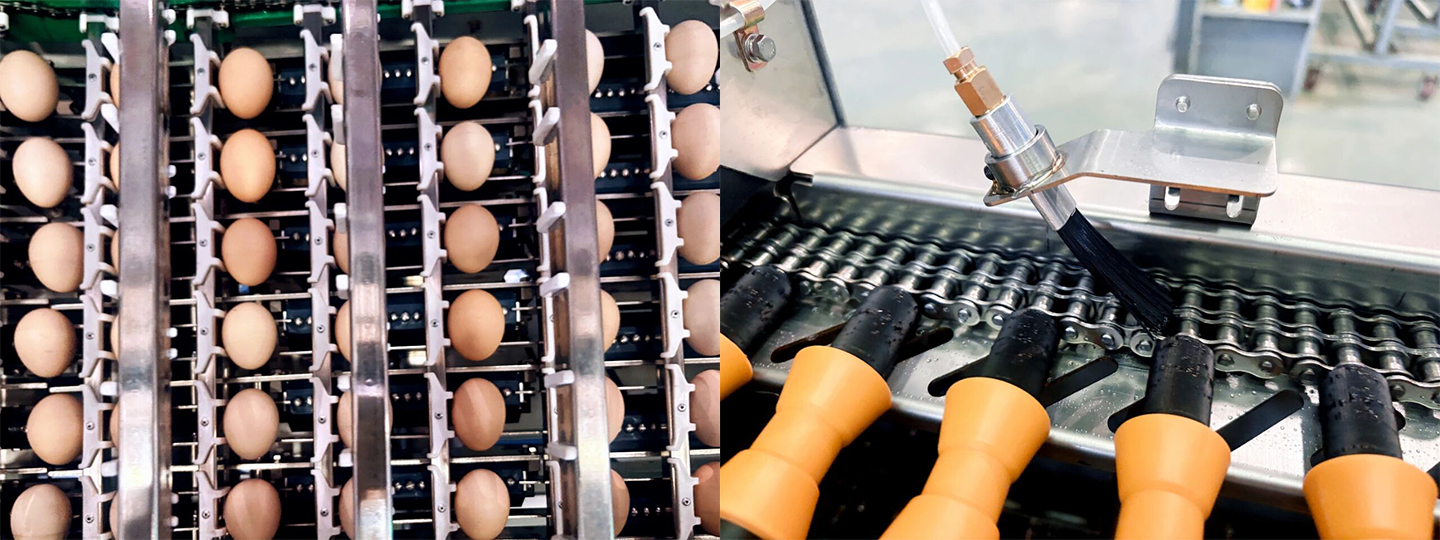

Egg Orientation Adjustment：Using precision stainless-steel guide rods, the system automatically aligns eggs with the large end facing the same direction, achieving an orientation accuracy rate of 99.95%.

Washing and Drying：Eggs are cleaned using 50–55°C warm water and specially designed brushes to remove surface contaminants. High-efficiency blowers and soft brushes thoroughly dry the shells, eliminating residual moisture.

Manual Candling Inspection：Operators identify and remove dirty eggs, cracked eggs, shell-damaged eggs, and eggs with abnormal coloration. Specially designed focused-light LEDs provide excellent shell penetration while remaining comfortable for long-term operation.

Crack Detection：A contact-based crack detection system accurately identifies microcracks as small as 0.1 mm, achieving a detection accuracy of 99.5%.

UV Sterilization：The ultraviolet sterilization module delivers a sterilization rate of up to 99.99%, strengthening food safety protection. Its optimized design also extends lamp service life beyond comparable products.

Oil Coating for Freshness Preservation：A high-pressure atomization system produces droplets as fine as 20 microns, helping to extend egg shelf life and maintain freshness.

Egg Coding and Traceability：Food-grade ink is used to clearly print production dates, batch numbers, and traceability codes, ensuring full product traceability throughout the supply chain.

Weighing and Grading：High-precision sensors provide grading accuracy of ±0.5 g. Users can customize multiple grading categories from 0–99 g to meet diverse market requirements.

Sorting and Packaging：Eggs are automatically routed to designated packaging lanes based on weight grades and product classifications. Additional packaging lanes can be integrated to accommodate future capacity expansion.

Human–Machine Interface：A user-friendly visual control platform enables real-time production monitoring, data recording, and operational management.

Three Core Advantages Driving Egg Processing Upgrades

Maximum Efficiency, Significantly Higher Productivity

• Processes up to 72,000 eggs per hour
• Far exceeds manual sorting efficiency
• One-touch automated operation throughout the entire process
• Significantly reduces labor requirements and operating costs
• Seamlessly integrates with central egg collection systems

Strict Quality Control, Consistent Product Quality

• Multiple inspection stages remove cracked, dirty, damaged, and irregular eggs
• Industry-leading grading precision ensures consistent product specifications
• Improves product quality and market competitiveness
• Constructed from food-grade 304 stainless steel
• Fully enclosed design minimizes the risk of secondary contamination

Intelligent Operation and Maintenance

• Automatic roller cleaning system
• Automatic egg cup washing and drying system
• Maintains equipment cleanliness and extends service life
• Automatic lubrication system reduces mechanical wear and failure rates
• Real-time equipment monitoring with early warning functions
• Rapid fault diagnosis and troubleshooting
• Intuitive touchscreen controls for easy operation

Why Choose the Little Giant Smart Egg Grading System?

Proven Technical Expertise：With nearly 40 years of experience in livestock and poultry equipment manufacturing, Little Giant has developed extensive technical expertise and holds numerous patented technologies.

Customized Solutions：Tailored configurations are available based on production capacity, egg type, grading requirements, and packaging specifications, ensuring the ideal solution for every operation.

Comprehensive Lifecycle Support：From project planning and equipment installation to commissioning, staff training, and after-sales service, Little Giant provides complete one-stop support throughout the equipment lifecycle.

Trusted by the Market：Little Giant egg grading systems are widely used by leading egg producers across China and have been successfully exported to international markets, earning strong industry recognition and customer trust.

Your Strategic Partner for Egg Processing Excellence

The Little Giant Smart Egg Grading System is more than just a piece of equipment—it is a strategic partner for modernizing and upgrading egg processing operations.

Contact us today to discover a customized solution designed specifically for your business.
