Multi-Tier Automated Layer Duck Rearing System ‒ YL550

Multi-Tier Automated Layer Duck Rearing System ‒ YL550

Multi-Tier Automated Layer Duck Rearing System ‒ YL550

Our automatic laying duck equipment integrates feeding, egg collecting, manure cleaning and environmental control. Made of premium aluminum-zinc alloy with roomy cages, it fits laying ducks’ waterfowl traits and keeps eggs clean while cutting land and investment costs drastically. One operator can manage huge duck flocks efficiently. Paired with smart climate control and digital breeding system, it supports healthy, high-yield duck raising with low maintenance and great value for money.

Product Details

Advantage

Enhanced Space Utilization.

Enhanced Space Utilization.

Precise Environmental Control.

Precise Environmental Control.

Cleaner Eggs with Reduced Breakage.

Cleaner Eggs with Reduced Breakage.

High and Consistent Egg Production with Superior ROI.

High and Consistent Egg Production with Superior ROI.

Centralized Manure Handling for Better Environmental Compliance.

Centralized Manure Handling for Better Environmental Compliance.

Significantly Improved Rearing Efficiency.

Significantly Improved Rearing Efficiency.

Product Parameters

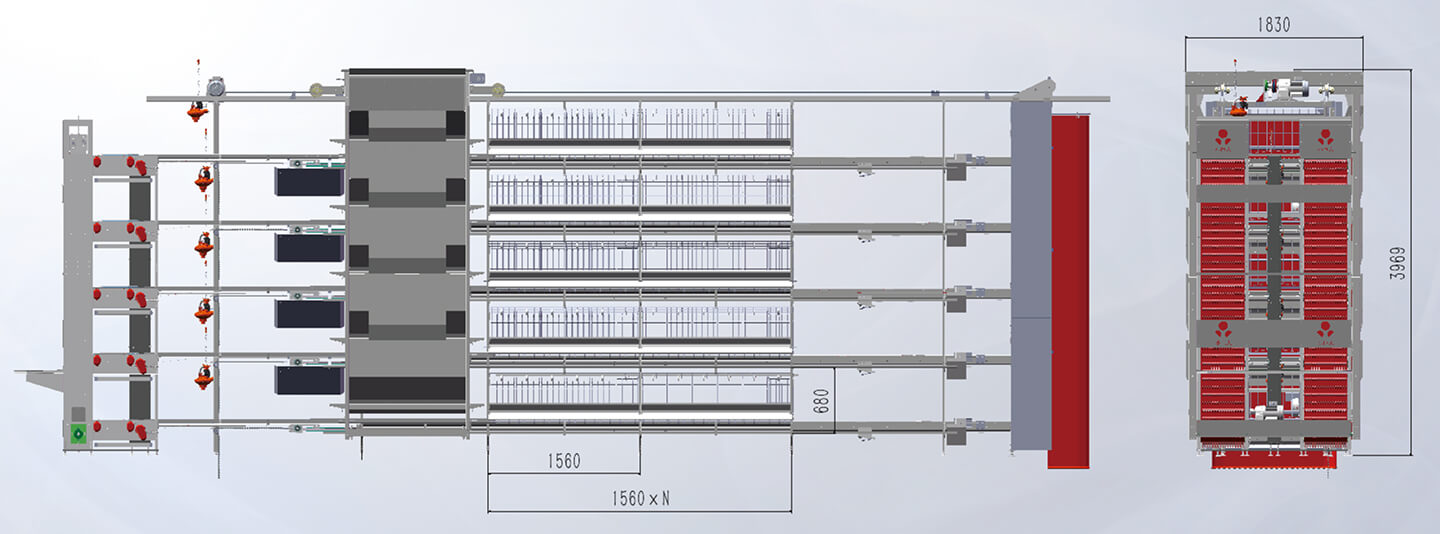

YL550 Series Layer Duck Equipment Specifications

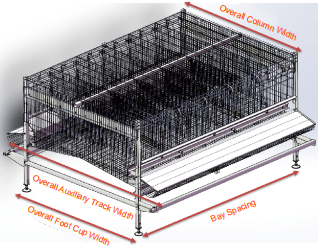

Column outer edge width (mm) 1100
Foot cup outer edge width (mm) 1138
Auxiliary track outer edge width (mm) 1430

* The diagram shows a single waterline configuration, which is the standard configuration. A dual waterline configuration is available as an option.

YL550 Series Layer Duck Equipment Parameters

NumberofTiers

3

4

5

6

8

FloorSpaceperBird(cm²)

715

715

715

715

715

Birds per Cage

2

2

2

2

2

Birds per Bay

72

96

120

144

192

Bay Spacing (mm)

1560

1560

1560

1560

1560

Inter-TierSpacing(mm)

680

680

680

680

680

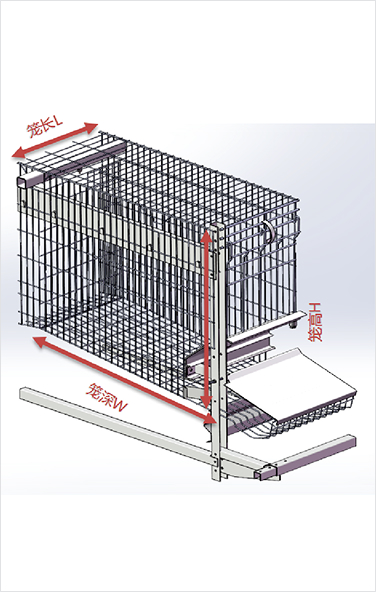

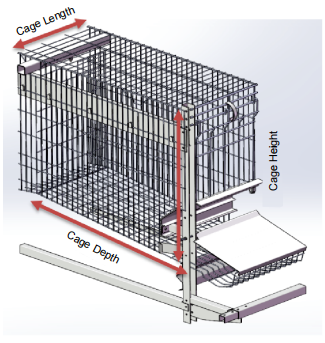

Cage Length (mm)

260

260

260

260

260

Cage Depth (mm)

550

550

550

550

550

Cage Height (mm)

495

495

495

495

495

YL550 Series Layer Duck Equipment Specifications
