Automatic Feeding System for Pig Farms

Automatic Feeding System for Pig Farms

Automatic Feeding System for Pig Farms

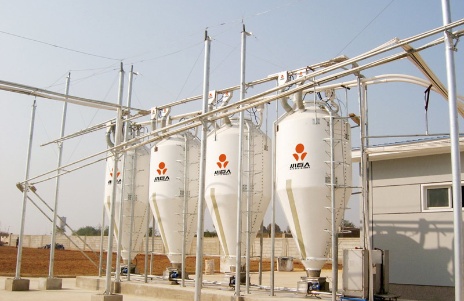

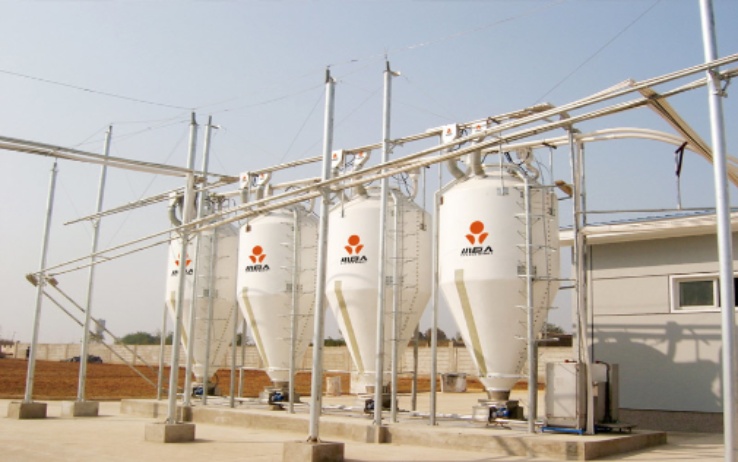

Little Giant galvanized feed bins are widely used for feed storage and conveying in farming facilities, operating in conjunction with feed trucks or elevators. Commonly used feed bin specifications in livestock and poultry houses include diameters of Φ1830mm, Φ2750mm, Φ3670mm, Φ600mm, and Φ5500mm, with configurations ranging from half-level, single-level, double-level, triple-level to multi-level designs, and capacities from 3T to 60T to meet the diverse needs of different farming enterprises.

Feed Bin Features:


● Constructed from corrosion-resistant galvanized steel or fiberglass.
● Can be installed indoors or outdoors, directly beneath the feed bin.
● Precise conveying capacity adjustment via a sliding switch: a single feed line hopper can be used, or a dual feed line hopper for supplying two different feed types.

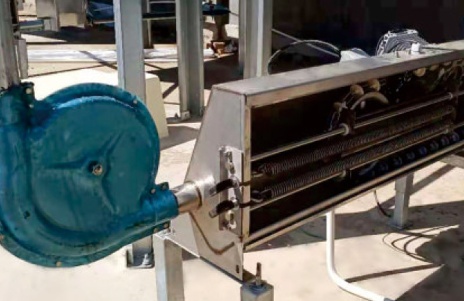

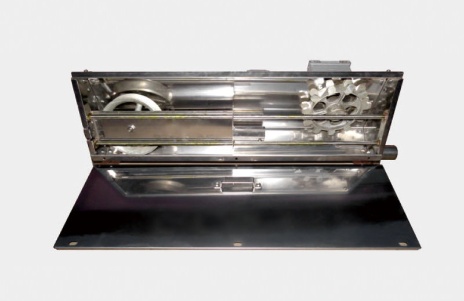

● The hopper is equipped with mechanical or electric forced feeding or return mechanisms to prevent system overflow.

Product Details

Product Feature

Innovative Design

The feed bin lid incorporates an automatic tension-adjusting torsion spring mechanism, allowing the lid to be easily opened and closed from the ground via a handle. The lower cone section is fitted with an organic transparent observation window for real-time monitoring of feed conveyance.

Premium Material Selection

Feed bins are made from hot-dip galvanized steel plates produced by leading domestic manufacturers or high-quality fiberglass materials from reputable suppliers, catering to diverse client requirements. All bolts used in the feed bins are M10 high-strength hot-dip galvanized bolts, tested with a 48-hour salt spray resistance assessment. Horizontal and vertical seams are sealed with silicone paste, providing weather resistance, structural integrity, and extended service life.

Safe and User-Friendly

The feed bin ladder features sturdy, anti-slip steps at each level and is equipped with circular guardrails, ensuring a safer and more ergonomic design.

Easy Installation

All main panels come with uniformly spaced pre-drilled mounting holes, eliminating the need for on-site drilling or cutting.
