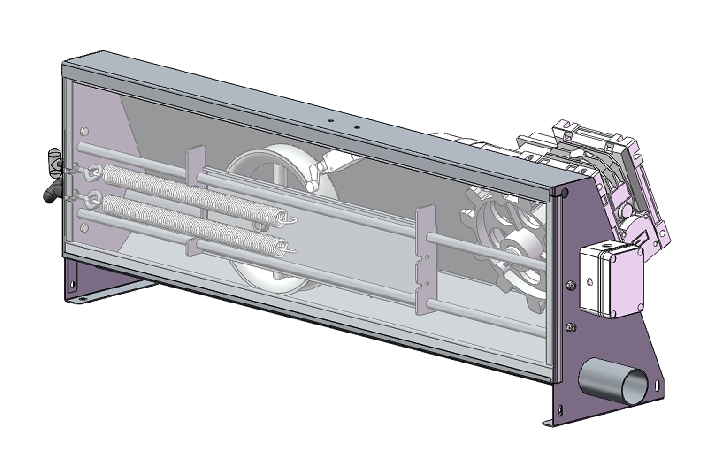

60 Chain-Disk Feeding System
The Model 60 chain-disk feeding line with automatic drive feeding system maximizes farming benefits through precise, intelligent and high-efficiency feeding control.
Drive：Model 60 worm-gear motor drive, feed output up to 1.5 tons per hour.
Chain：20Mn2 steel with deburring process, breaking load＞18KN.
Electric Discharge Three-way Valve：Gear sleeve transmission equipped with dual sensors for accurate feeding and anti-blockage.
Variable-frequency Auger Control Box：Variable speed regulation, 304 stainless steel blades; direct coupling connection ensures stable running.
Advantage
Fully automatic precise feeding, no manual handling required.
Timed and quantitative feeding with error below 2%.
Covers all farm troughs rapidly, cutting single feeding time by 50%.
Constructed from 304 stainless steel or high-strength PVC, corrosion and aging resistant.
Feed transported via sealed pipelines to avoid contamination and moisture.
Low-noise drive design reduces pig stress caused by manual operations.
