Environmental Control System

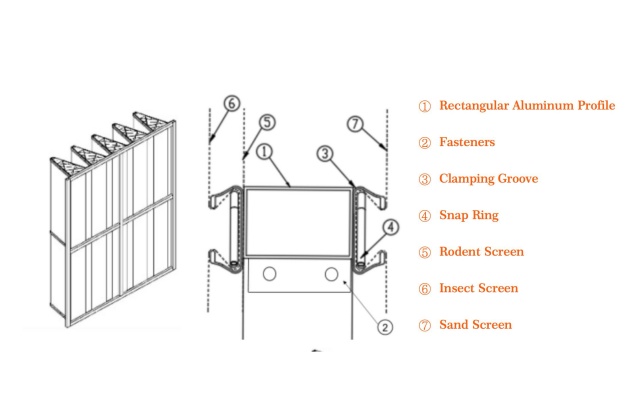

Triple-Protection Screen Assembly: Consists of a stainless steel rodent screen, insect screen, and a PE sand screen, offering strong corrosion resistance and a long service life. The insect and sand screens are secured with spring clips and grooves for easy disassembly, assembly, and product maintenance.

Sidewall Air Filtration System: The primary filter media is made of synthetic fiber, white-green in color, with a G4 filtration rating, and is internally reinforced with a steel wire mesh. The frame is constructed from aluminum alloy profiles. The modular frame design facilitates easy disassembly, assembly, and filter media replacement.

Aluminum Alloy Cooling Pads: Feature a practical appearance, easy disassembly, high strength, and excellent weather resistance. Water distribution across the pad is uniform, the structure is compact, and there is no water leakage.

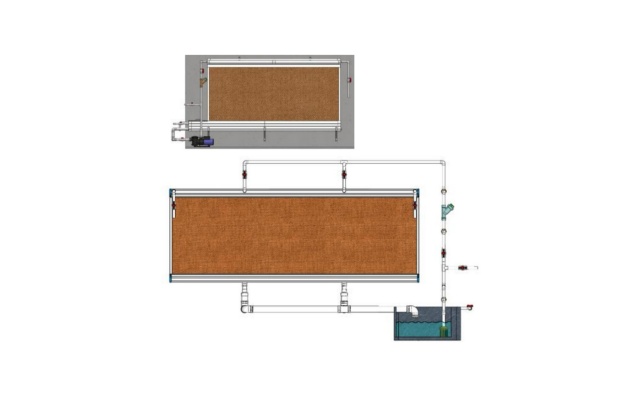

Deep Trough Cooling Pads: The integrated water trough can meet its own water supply needs, eliminating the requirement for constructing a separate water pool. It comes with a built-in filter pump that operates without vibration or noise. The trough is a sealed space, preventing contamination from external water sources.

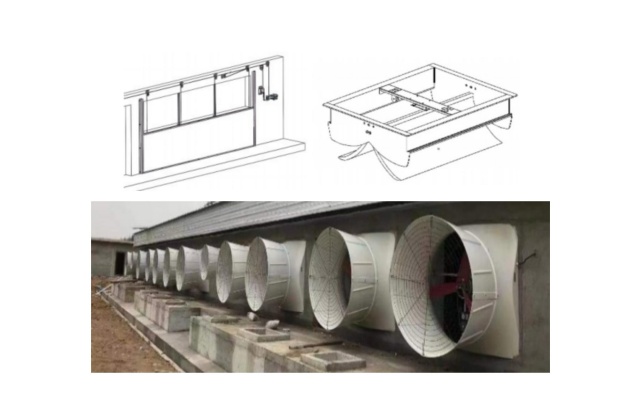

Curtain Inlet: The main body is a hollow PVC panel, including edging, slide rails, and other accessories.
Louvered Inlet Window: Provides good thermal insulation and sealing performance.
Non-Powered Inlet Window: Features no drive mechanism, offering energy efficiency, environmental friendliness, and reliability.
Dual-Sided Butterfly Inlet Window: Allows air intake from both sides, ensuring more even air distribution.

Fans: Include all models ranging from 24 to 54 inches.
Fan Blades: Available in plastic blades or cast aluminum blades.
Standard Components: Made of 304 stainless steel. Motors are from Leeson or domestic manufacturers.

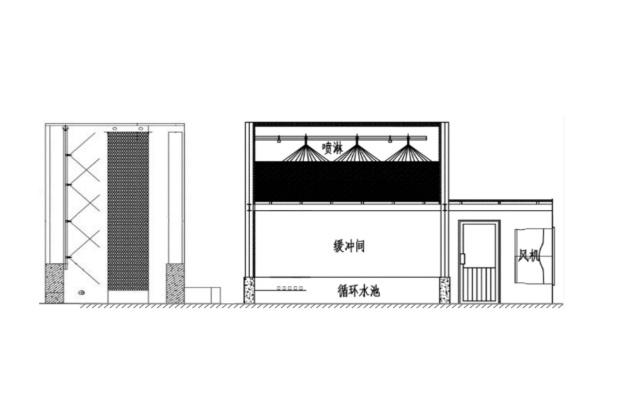

Vertical Treatment Unit: Features low equipment costs and low civil engineering costs.
Horizontal Treatment Unit: Employs counter-current gas and liquid flow for effective deodorization and uses less water.

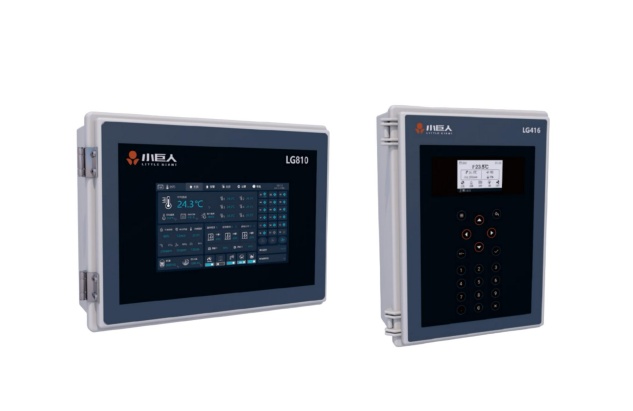

LG416 Controller: Operated via a matrix digital keypad, ensuring safety and reliability. Provides precise temperature control through ventilation stages. Offers comprehensive control functions and optimized, customized ventilation control strategies. Automatically monitors and analyzes water and feed consumption. Compatible with the Smart Farm Cloud Platform and Smart Farm APP.

LG810 Controller: Features a 7-inch/10-inch touchscreen operation. Combines stepless and stepped ventilation modes. Automatically adjusts target temperature based on outdoor temperature and modulates minimum ventilation accordingly. Automatically monitors and analyzes water and feed consumption. Compatible with the Smart Farm Cloud Platform and Smart Farm APP.
