2024 Hebei Laying Hen Welfare Cage Project Showcase
2024 · Open Multi‑Tier Free-Range System for Welfare Cages
Hebei Laying Hen Project
Project Completion Showcase

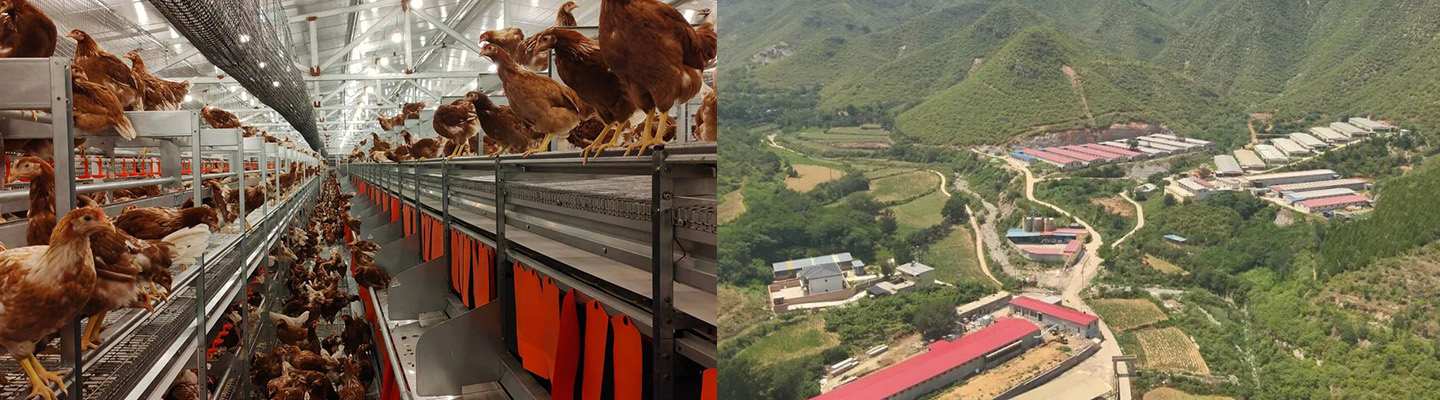

The Hebei Laying Hen Welfare Cage Project covers an area of 100 mu. As the equipment supplier and after-sales service provider for this project, Little Giant successfully completed the laying hen welfare cage project in July 2024.As one of Little Giant Group’s clients with a fully operational welfare cage system, we uphold our mission:To help customers raise every batch of chickens successfully.Little Giant conducted in-depth analysis of customer expectations and requirements, continuously optimized solutions, and finally delivered a unique, customized solution for the client.
PART 01
Breeding Zone Partitioning

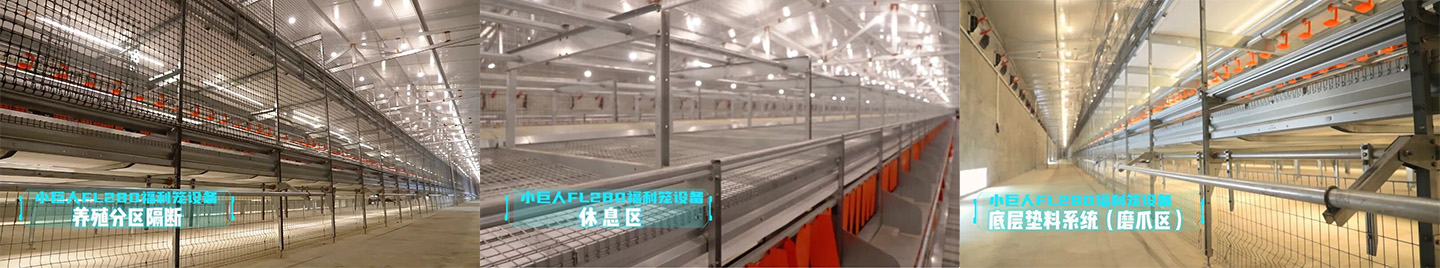

FL280 Welfare Cage System – Breeding Zone Partitioning
The Little Giant FL280 Welfare Cage System adopts zoned breeding, with partitions between different areas. The housing zones for the flock can be configured according to customer requirements.Aisle sides can also be set as temporary zones, equipped with a bottom chicken retention device that can be opened or closed based on farming needs.The FL280 system features a two‑tier structure, with two rows of resting and activity platforms and nesting box platforms.The water line, feed line, and nesting boxes are arranged on the same horizontal level, allowing hens to drink immediately after feeding and lay eggs conveniently.The cage structure is evenly utilized, ensuring uniform flock distribution without interference.
PART 02
Resting Area
FL280 Welfare Cage System – Resting Area
The top level of the combined cage and nesting box structure serves as the resting area, equipped with feed lines and perches.Additional feed lines can be installed according to stocking density.The stepped design allows hens to move freely and easily between functional areas – resting, feeding, drinking, and laying – with only small jumps.
PART 03
Bottom Litter System (Claw Conditioning Area)
FL280 Welfare Cage System – Bottom Litter System
The entire floor area of the house serves as a claw conditioning area for hens.Automatically retractable cage structures and perches expand the activity space for the flock.
Adequate lighting is installed below the entrance to the claw conditioning area, discouraging hens from laying eggs in this zone.The litter reduction system automatically removes manure and excess litter when needed, helping to reduce dust.Elevated access walkways allow detailed daily inspection of the flock and provide farm staff with an excellent view for monitoring.
PART 04
Environmental Control System

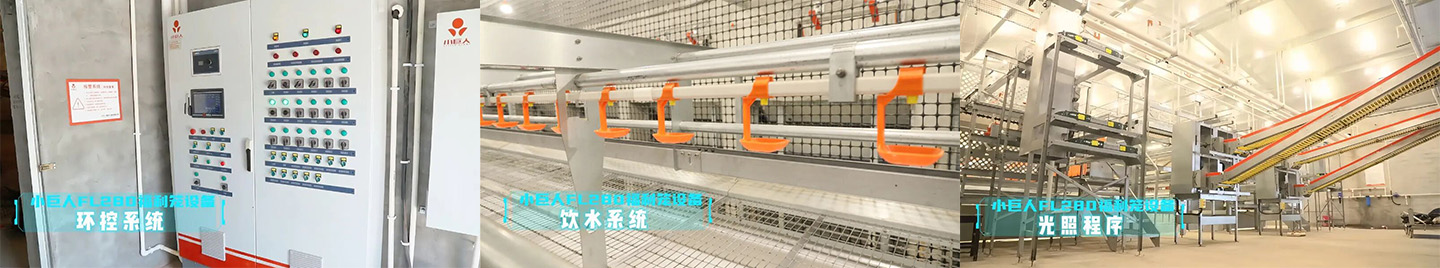

FL280 Welfare Cage System – Environmental Control System
The environmental control system uses the Little Giant LG800 Intelligent Poultry House Environment Controller, integrating the latest intelligent control technology.It combines ventilation, temperature, humidity, lighting, heating, cooling, feeding, and alarm functions.The user-friendly interface ensures simple and convenient operation.The system supports network connectivity and IoT integration, enabling full remote monitoring of farm operation anytime, anywhere.
PART 05
Lighting Program
FL280 Welfare Cage System – Lighting Program
Lighting programs are critical for hen egg production.The equipped breeding bulbs and LED tubes feature dimming functions that realistically simulate natural light changes.Lights gradually brighten from dim to full intensity, allowing the flock to adapt smoothly and avoiding stress.
Through precise lighting control in different zones, hens can easily find feed, water, and nesting boxes in the early morning.
PART 06
Drinking Water System
FL280 Welfare Cage System – Drinking Water System
The drinking water system is equipped with patented drinking nipples for precise water supply.
Water line height can be adjusted independently.The intelligent control system monitors water line levels in real time for accurate water replenishment.A built-in disinfection system enables regular cleaning and sanitization.
PART 07
Feeding System

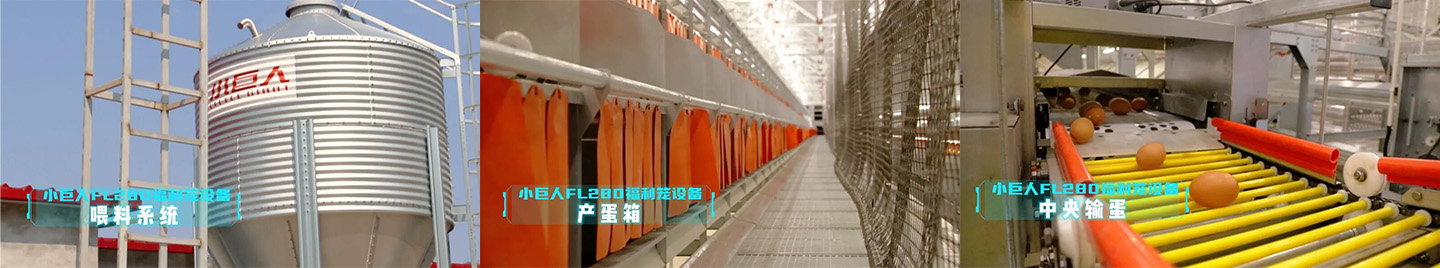

FL280 Welfare Cage System – Feeding System
The feeding system adopts a chain feeding mechanism with uniform feed distribution.The background control system detects feeding status accurately in real time.The feed tower delivers precise feeding, minimizing feed waste.
PART 08
Nesting Boxes
FL280 Welfare Cage System – Nesting Boxes
Two tiers of nesting box groups are integrated into the system via connecting passages.Hens enter the nesting boxes through curtain panels to lay eggs.Each box is equipped with soft mats and a two‑section sloped floor, ensuring all eggs roll gently onto the egg conveyor belt.At night, the sloped floors close upward, encouraging hens to use nesting boxes only for laying and preventing overnight roosting, thus reducing manure contamination.The upper level of the nesting boxes is fitted with covers to protect eggs from dust pollution.
PART 09
Central Egg Collection System
FL280 Welfare Cage System – Central Egg Collector
Eggs from the nesting boxes roll onto egg belts with a high proportion of triangular holes, ensuring clean eggs and stable transportation.Eggs are then conveyed via longitudinal roller chains or elevators to the egg collection table.The entire egg collection system has very few transfer points, providing extremely smooth egg transport – an ideal solution for egg handling.
PART 10
Longitudinal Floor Egg Collection

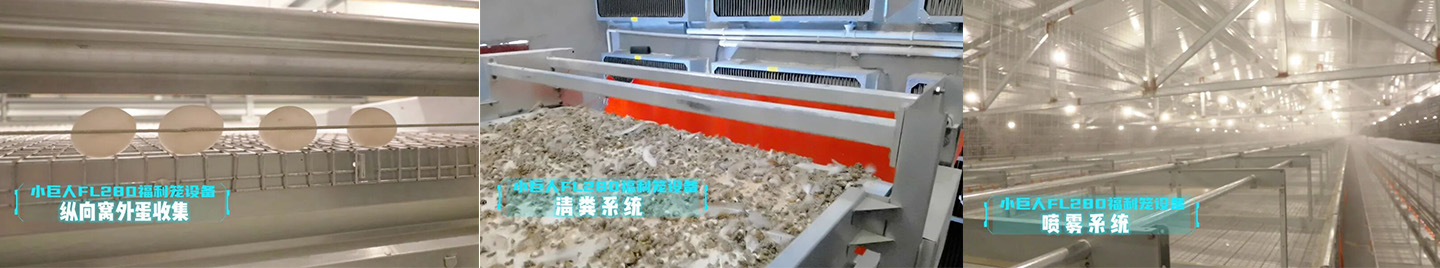

FL280 Welfare Cage System – Longitudinal Floor Egg Collection
Each tier is equipped with a sloped bottom net, allowing approximately 1% of floor eggs to roll toward the sheet-metal perches on one side.Eggs rest safely under these perches until manual collection.The large claw conditioning area at the entrance provides sufficient height and width for farm staff to inspect nesting boxes and eggs easily.
PART 11
Manure Removal System
FL280 Welfare Cage System – Manure Removal System
The end manure removal system is equipped with a longitudinal manure machine and manure belts.Manure drops onto the lower belts and is conveyed longitudinally to the end of the house, then transferred transversely and obliquely to designated storage areas.The manure discharge end is shielded by manure curtains to prevent splashing and contain the manure zone neatly.Manure belts under each tier collect and remove manure from the house, reducing ammonia levels and improving hygiene.
PART 12
Spraying System
FL280 Welfare Cage System – Spraying System
The fully automatic spraying system performs regular disinfection and sanitization, optimizing the living environment for hens and improving survival rates.
PART 13
Auxiliary Equipment
(Cooling Pad, Fan, Air Inlet, Air Baffle)

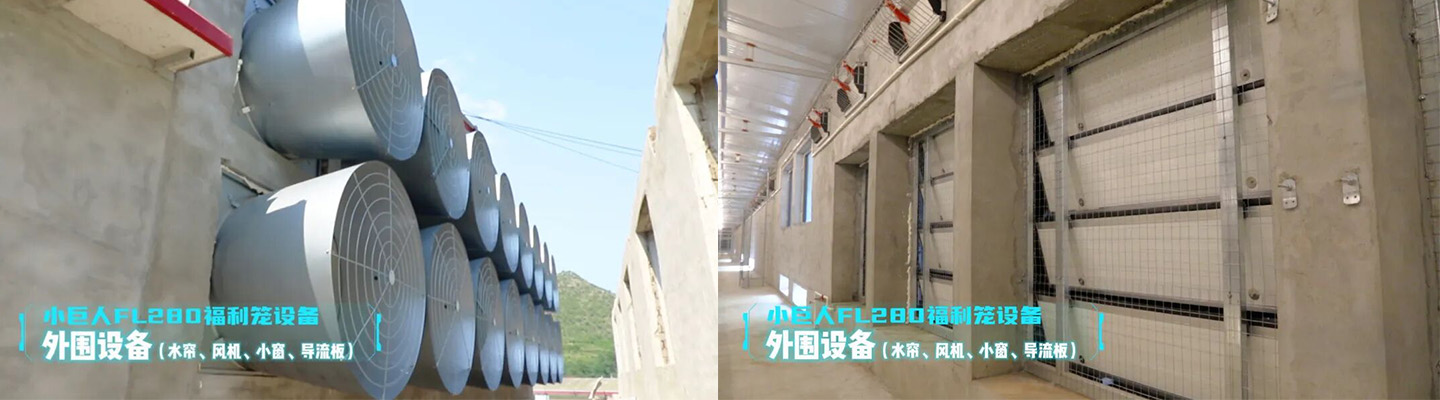

FL280 Welfare Cage System – Auxiliary Equipment
The ventilation system supports cross ventilation and tunnel ventilation with properly arranged fans.Side inlets and baffles are equipped with mesh covers; fans and side inlets have rain hoods for extended service life, stability, and reliability.Fans, air panels, small inlets, cooling pads, and temperature/humidity sensors work together to maintain the poultry house within the ideal environmental range for livestock and poultry.
Little Giant Animal Husbandry Equipment’s intelligent welfare cage products empower your farming business with superior quality and leading technology –the smart choice for modern poultry farming.For the Hebei project, the Little Giant service team developed a complete breeding solution based on customer requirements, introducing intelligent digital technology throughout the entire farming process.
All poultry houses are equipped with the Little Giant LG800 Intelligent Environment Control System, enabling real-time monitoring of temperature, humidity, lighting, and other data.
Customers can remotely access and review house environment data, production data, and equipment status.
In the future, Little Giant will continue to uphold its mission:Helping customers raise every batch of chickens successfully.We will consistently provide professional products and standardized services to our customers.
